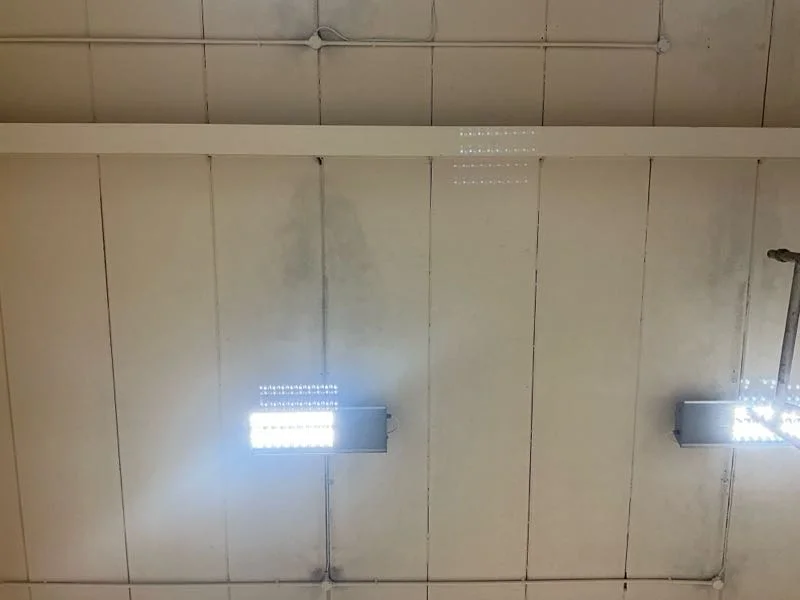

RAAC Scanning in Pangbourne
If a building in Pangbourne dates from the 1950s to the mid 1990s and has a flat roof, scanning is the fastest way to know whether RAAC is in it. It is non-destructive, it is done with the building in use, and at Structured Carbon it is led by Neil Smuts (MCIOB, MInstNDT, FRCSP), President of the UK Concrete Scanning Standard and a Fellow of the Register of Concrete Scanning Professionals.
- Led by Neil Smuts, President of the UK Concrete Scanning Standard and Fellow of the Register of Concrete Scanning Professionals
- Confirms RAAC and locates its reinforcement without opening up the structure
- Building stays in use; quiet, room-by-room work
- Results feed straight to a chartered RAAC engineer, John Staves CEng FIStructE MIoD
Based in Finchampstead, Wokingham. Pangbourne is local to us.
Why scan rather than look
Two things cannot be seen from below a ceiling: whether a panel is RAAC at all, and where its reinforcement is. Scanning answers both. It separates RAAC from dense concrete by its internal structure, and it maps the reinforcement in each plank, including whether the bars reach the bearings, which is where RAAC planks are most likely to fail. The results are logged to a location plan for every panel scanned, ready for structural assessment.
Scanning led by the national standard
The person holding the scanner decides whether the results mean anything. At Structured Carbon that person is Neil Smuts (MCIOB, MInstNDT, FRCSP), President of the UK Concrete Scanning Standard and a Fellow of the Register of Concrete Scanning Professionals, who leads the national standard for concrete scanning and owns the Assess and Monitor stages of our RAACSafe™ Protocol. The results of every scan in Pangbourne are handed straight to John Staves (CEng FIStructE, MIoD), a chartered structural engineer and one of the UK's leading specialists in RAAC, so the same evidence drives the structural assessment and, where it is the right answer, the design of strengthening in place.
Is it RAAC or ordinary concrete? Identification in Pangbourne
The most common question from schools, academies, NHS estates and councils in Pangbourne is the simplest one: is this roof RAAC or ordinary concrete? From below they can look identical. Ground penetrating radar and ultrasonic scanning settle it in minutes per panel, because RAAC's light cellular structure and its reinforcement pattern read very differently from dense concrete. The same scan locates the reinforcement and checks whether it reaches the bearings, the single most important fact about a RAAC plank. Scanning is included in our visual survey, from £395, and in every engineering inspection.
Buildings in Pangbourne worth scanning
We know Pangbourne well: it is a Thames village with Pangbourne College and a station on the Great Western Main Line, with college, school and village buildings of every period, and around 3,300 residents under West Berkshire Council. Ask the RAAC scanning question of any flat-roofed building here that predates the mid 1990s, because that is where RAAC planks were used.
A practical starting point in Pangbourne
If you are responsible for buildings in Pangbourne, start with a list. Which of them have flat or low-pitched roofs, and which were built or extended between the 1950s and the mid 1990s? In the West Berkshire Council area that will usually take in college, school and village buildings of every period. Anything on that list that has never had RAAC ruled in or out is a candidate for a RAAC scanning. Send us the list and we will tell you which buildings justify a visit, and which can be cleared from the desk with drawings alone.
Scanning as part of a RAAC survey
Scanning sits at the front of a chain. Scan and survey establish the facts about each panel in Pangbourne; the assessment by John Staves (CEng FIStructE, MIoD), a chartered structural engineer and one of the UK's leading specialists in RAAC turns those facts into a decision; and where that decision is to strengthen rather than replace, the CFRP is designed to the scan and survey data, manufactured in the UK, installed with the building in use and monitored afterwards. Together they ensure safe, quality-controlled delivery throughout. Full RAAC surveys in Pangbourne include the scan as standard. Across the RAAC tenders we cost, a bespoke CFRP scheme engineered for that exact roof frequently comes in at well below 15 per cent of the cost of full replacement. On one tender, a roof costed at around £40 million to replace was priced for strengthening at under £4 million.
What we bring to Pangbourne
We have surveyed thousands of square metres of RAAC, using GSSI Flex NX and GSSI StructureScan Mini ground penetrating radar, Proceq GP8800 and GP8100 radar, the Proceq Pundit PD8050 ultrasonic tomograph, and other electromagnetic and ultrasonic NDT instruments. We can usually be on site in Berkshire within one to two days, evening, weekend and holiday visits are no problem, and the report follows within five working days of the site visit, depending on the size of the survey and the level of detail required. Professional indemnity insurance is held to a maximum of £10 million, with public and employers' liability arranged on a per-site basis.
Two named specialists, one team
Neil Smuts, MCIOB MInstNDT FRCSP
Survey, scanning and monitoring. President, UK Concrete Scanning StandardNeil leads the survey, scanning and monitoring side of every Structured Carbon project. He is President of the UK Concrete Scanning Standard, a member of the Chartered Institute of Building and the Institute of NDT, and a Fellow of the Register of Concrete Scanning Professionals. LinkedIn
John Staves, CEng FIStructE MIoD
Structural assessment and CFRP designJohn is a chartered structural engineer and one of the UK's leading specialists in RAAC. He carries out the structural assessment and designs every strengthening scheme. John received both the Regional and the National Innovation Award at the HSBC Commercial Banking and Federation of Small Businesses Small Business Growth Awards for his work on RAAC repair. LinkedIn
Thank you, we have your enquiry
One of the team will come back to you within one working day. If it is urgent, call +44 118 430 8430.
RAAC scanning FAQs
What areas do you cover?
We are based in Finchampstead, Wokingham, so Pangbourne is on our doorstep. Berkshire, Hampshire, Surrey, Oxfordshire and Buckinghamshire are local to us, and we scan RAAC across the UK.
What scanning equipment do you use?
GSSI Flex NX and GSSI StructureScan Mini ground penetrating radar, Proceq GP8800 and GP8100 radar, the Proceq Pundit PD8050 ultrasonic tomograph, and other electromagnetic and ultrasonic NDT instruments. We have surveyed thousands of square metres of RAAC with them.
How soon can you scan a building in Pangbourne?
We can usually be on site in Berkshire within one to two days, and evening, weekend and holiday visits are no problem. The report follows within five working days of the site visit, depending on the size of the survey and the level of detail required.
Is my roof RAAC or ordinary concrete?
From below you usually cannot tell. Scanning can, in minutes per panel: RAAC's light cellular structure and its reinforcement pattern read very differently from dense concrete. If your building in Pangbourne is flat-roofed and dates from the 1950s to the mid 1990s, a scan is the quickest way to know.
What does RAAC scanning cost?
Scanning is included in the visual survey and in every engineering inspection, so it is not priced separately. As a guide, a visual RAAC survey starts from £395. A full engineering inspection of a large or complex building, a hospital for example, is priced per building once we know its size, access and the level of detail required.
Is RAAC scanning destructive?
No. The scan is carried out from the surface of the panel, usually the underside, with no cutting, coring or drilling. The building stays in use.
Can scanning tell RAAC from ordinary concrete?
Yes. RAAC has a light, cellular internal structure that reads very differently from dense reinforced concrete. That difference, plus the reinforcement pattern, is how a scan confirms the material.
