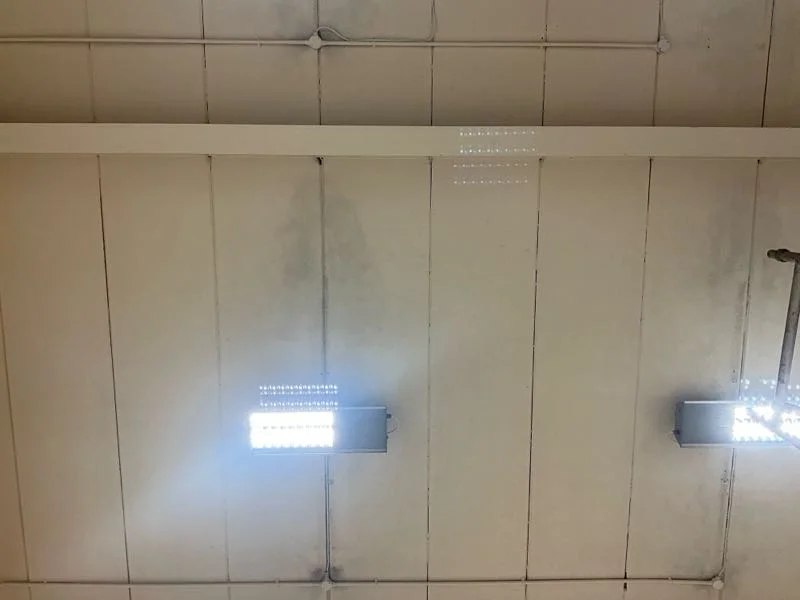

RAAC Scanning in Bracknell
If a building in Bracknell dates from the 1950s to the mid 1990s and has a flat roof, scanning is the fastest way to know whether RAAC is in it. It is non-destructive, it is done with the building in use, and at Structured Carbon it is led by Neil Smuts (MCIOB, MInstNDT, FRCSP), President of the UK Concrete Scanning Standard and a Fellow of the Register of Concrete Scanning Professionals.
- Led by Neil Smuts, President of the UK Concrete Scanning Standard and Fellow of the Register of Concrete Scanning Professionals
- Confirms RAAC and locates its reinforcement without opening up the structure
- Building stays in use; quiet, room-by-room work
- Results feed straight to a chartered RAAC engineer, John Staves CEng FIStructE MIoD
Based in Finchampstead, Wokingham. Bracknell is local to us.
How scanning identifies RAAC
Two things cannot be seen from below a ceiling: whether a panel is RAAC at all, and where its reinforcement is. Scanning answers both. It separates RAAC from dense concrete by its internal structure, and it maps the reinforcement in each plank, including whether the bars reach the bearings, which is where RAAC planks are most likely to fail. The results are logged to a location plan for every panel scanned, ready for structural assessment.
Scanning led by the national standard
A scan of a RAAC roof in Bracknell is only useful if two people trust it: the surveyor who reads it and the engineer who acts on it. Ours are Neil Smuts (MCIOB, MInstNDT, FRCSP), President of the UK Concrete Scanning Standard and a Fellow of the Register of Concrete Scanning Professionals, and John Staves (CEng FIStructE, MIoD), a chartered structural engineer and one of the UK's leading specialists in RAAC. Neil leads the national standard for concrete scanning and owns the Assess and Monitor stages of the RAACSafe™ Protocol; John owns Design. The scan is the first piece of evidence in a chain that can run all the way to a strengthened, monitored roof without leaving the partnership.
RAAC testing without opening up: what scanning replaces in Bracknell
Before scanning, confirming RAAC meant cutting an opening or taking a core. Neither is needed now. Non-destructive scanning identifies the material, locates the reinforcement and checks bearings from the surface, so a school, clinic, hall or office in Bracknell is surveyed with nothing removed and nobody moved out. Where an engineer later needs load or deflection data, that is added as part of the engineering inspection rather than by damaging the roof. Scanning comes with the visual survey, from £395, and with every engineering inspection.
Buildings in Bracknell worth scanning
We know Bracknell well: it is a post-war new town whose 1960s town centre was demolished and rebuilt as The Lexicon, surrounded by concrete-era estates and office campuses, with new-town schools, community buildings and estates built in exactly the decades when RAAC planks were a standard roof and floor component, and around 78,700 residents under Bracknell Forest Council. Frimley Park Hospital, which serves this part of Berkshire, is a publicly identified RAAC hospital and is being replaced under the New Hospital Programme, which has put RAAC on the agenda for every estates team in the area. Ask the RAAC scanning question of any flat-roofed building here that predates the mid 1990s, because that is where RAAC planks were used.
RAAC scanning: how to get started in Bracknell
Three pieces of information get a RAAC scanning in Bracknell moving: the age of the building, the type of roof, and any drawings or previous reports you hold. With those we can say whether the building is a realistic RAAC candidate, what the visit would involve, and how long it would take. For estates spread across Bracknell, Binfield and Warfield, we plan the visits as one programme so that nothing is missed and nothing is surveyed twice.
Scan, survey, assess
Scanning sits at the front of a chain. Scan and survey establish the facts about each panel in Bracknell; the assessment by John Staves (CEng FIStructE, MIoD), a chartered structural engineer and one of the UK's leading specialists in RAAC turns those facts into a decision; and where that decision is to strengthen rather than replace, the CFRP is designed to the scan and survey data, manufactured in the UK, installed with the building in use and monitored afterwards. Together they ensure safe, quality-controlled delivery throughout. Full RAAC surveys in Bracknell include the scan as standard. Across the RAAC tenders we cost, a bespoke CFRP scheme engineered for that exact roof frequently comes in at well below 15 per cent of the cost of full replacement. On one tender, a roof costed at around £40 million to replace was priced for strengthening at under £4 million.
What we bring to Bracknell
We have surveyed thousands of square metres of RAAC, using GSSI Flex NX and GSSI StructureScan Mini ground penetrating radar, Proceq GP8800 and GP8100 radar, the Proceq Pundit PD8050 ultrasonic tomograph, and other electromagnetic and ultrasonic NDT instruments. We can usually be on site in Berkshire within one to two days, evening, weekend and holiday visits are no problem, and the report follows within five working days of the site visit, depending on the size of the survey and the level of detail required. Professional indemnity insurance is held to a maximum of £10 million, with public and employers' liability arranged on a per-site basis.
Two named specialists, one team
Neil Smuts, MCIOB MInstNDT FRCSP
Survey, scanning and monitoring. President, UK Concrete Scanning StandardNeil leads the survey, scanning and monitoring side of every Structured Carbon project. He is President of the UK Concrete Scanning Standard, a member of the Chartered Institute of Building and the Institute of NDT, and a Fellow of the Register of Concrete Scanning Professionals. LinkedIn
John Staves, CEng FIStructE MIoD
Structural assessment and CFRP designJohn is a chartered structural engineer and one of the UK's leading specialists in RAAC. He carries out the structural assessment and designs every strengthening scheme. John received both the Regional and the National Innovation Award at the HSBC Commercial Banking and Federation of Small Businesses Small Business Growth Awards for his work on RAAC repair. LinkedIn
Thank you, we have your enquiry
One of the team will come back to you within one working day. If it is urgent, call +44 118 430 8430.
RAAC scanning FAQs
Is my roof RAAC or ordinary concrete?
From below you usually cannot tell. Scanning can, in minutes per panel: RAAC's light cellular structure and its reinforcement pattern read very differently from dense concrete. If your building in Bracknell is flat-roofed and dates from the 1950s to the mid 1990s, a scan is the quickest way to know.
What does RAAC scanning cost?
Scanning is included in the visual survey and in every engineering inspection, so it is not priced separately. As a guide, a visual RAAC survey starts from £395. A full engineering inspection of a large or complex building, a hospital for example, is priced per building once we know its size, access and the level of detail required.
Is RAAC scanning destructive?
No. The scan is carried out from the surface of the panel, usually the underside, with no cutting, coring or drilling. The building stays in use.
Can scanning tell RAAC from ordinary concrete?
Yes. RAAC has a light, cellular internal structure that reads very differently from dense reinforced concrete. That difference, plus the reinforcement pattern, is how a scan confirms the material.
Does the scan show where the reinforcement is?
Yes. Locating the reinforcement, including whether it extends to the bearings, is the main reason to scan RAAC. Bearing length is the single most important factor in how a RAAC plank behaves.
Do you scan the whole roof?
We scan every accessible panel that could be RAAC, recorded to a location plan. For a large estate in Bracknell we agree the scope with you first, but the principle is that unscanned panels are unknown panels.
Who interprets the results?
Neil Smuts (MCIOB, MInstNDT, FRCSP), President of the UK Concrete Scanning Standard and a Fellow of the Register of Concrete Scanning Professionals, leads and reads every scan. The results go to John Staves (CEng FIStructE, MIoD), a chartered structural engineer and one of the UK's leading specialists in RAAC, for structural assessment.
